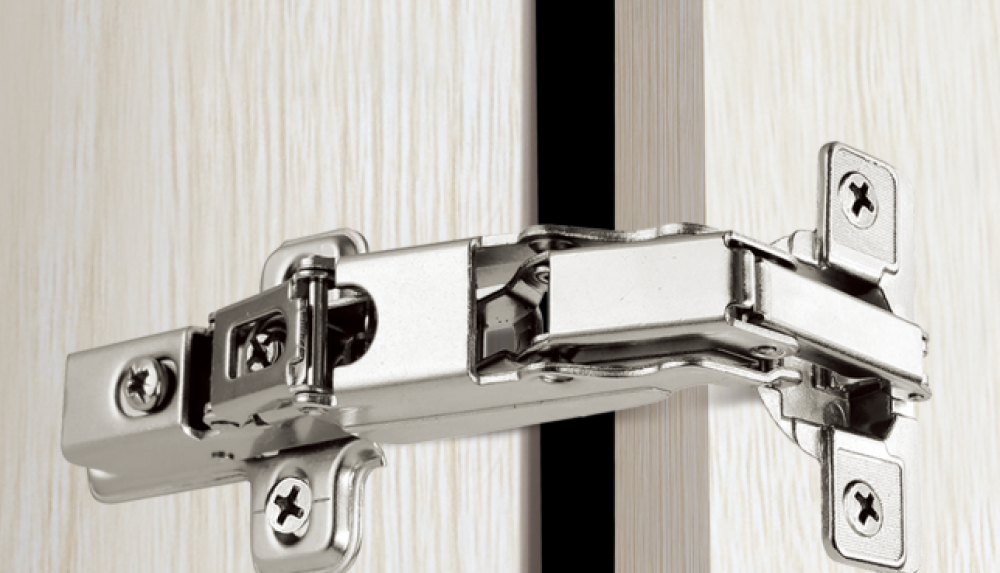

V165 Clip-on Hydraulic Buffering Hinge
V165 Clip-on Hydraulic Buffering Hinge
Opening angle: 165°
Depth of hinge cup: 11.5mm
Dia.of hinge cup: 35mm
Door thickness: 14-21mm
Main material: Cold-rolled steel
Finish: Nickel Plated
Packing: 100 pcs/CTN

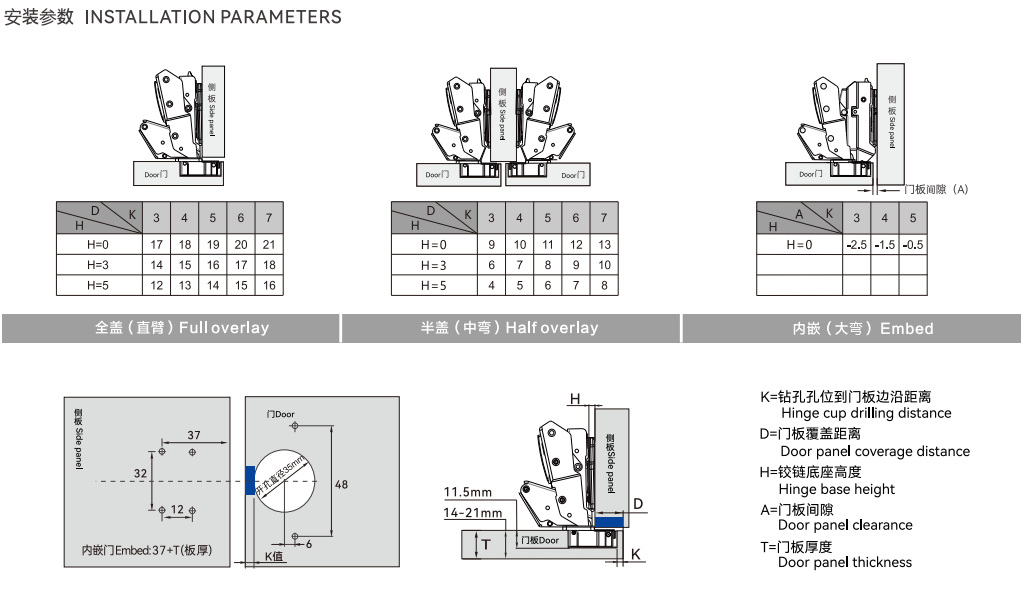

Product specifications
