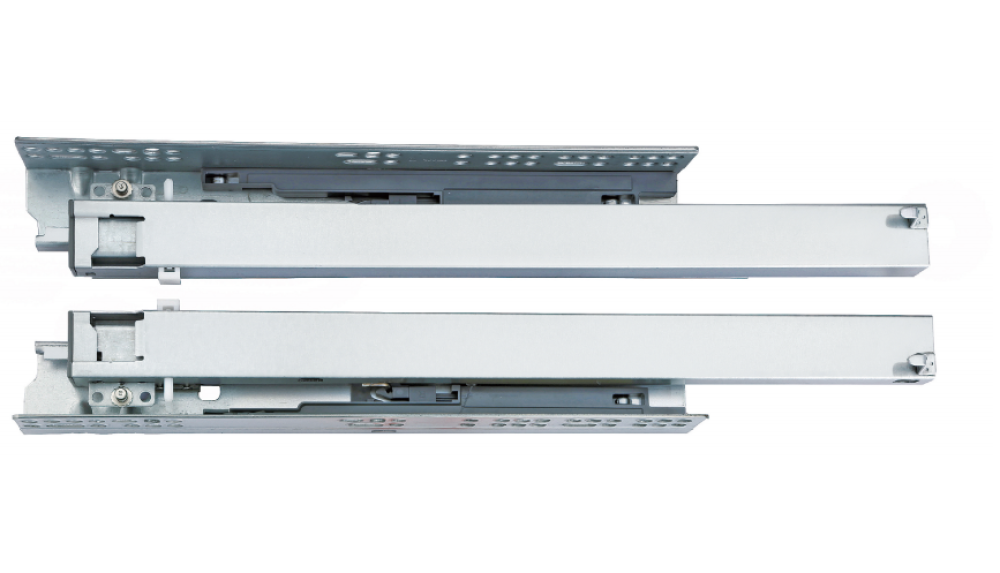

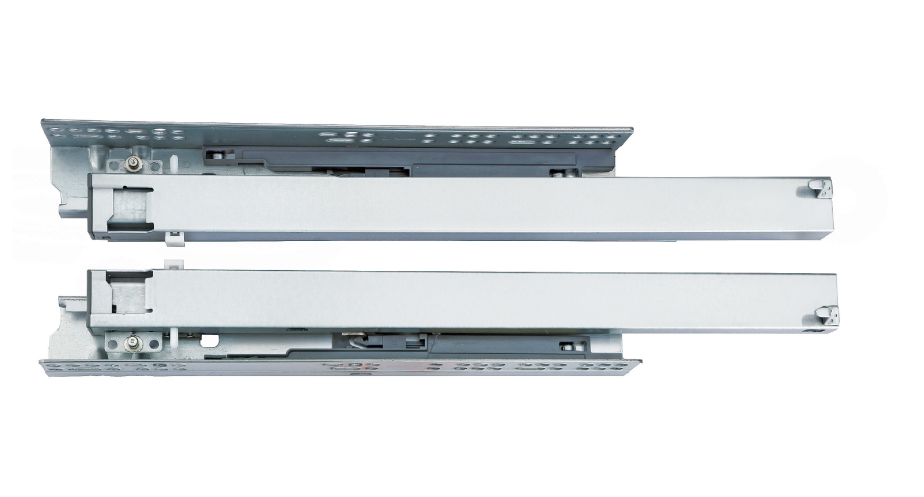

316RHA-10/318RHA-10 Three-fold Push open concealed slide
Load rating:25Kg(14"-28")
Material:Galvanized sheet
Thickness of Material(1.0/1 .5/1.8mm)
Tool-free quick Installation
Drawer height adjustable by 1-3mm
Length:250-700mm
Packing:10sets/CTN

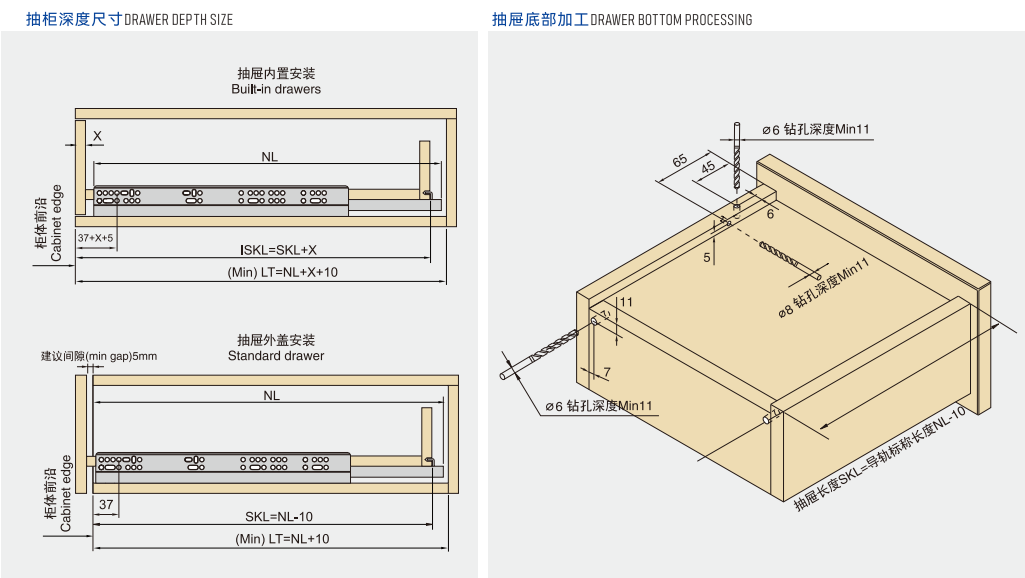

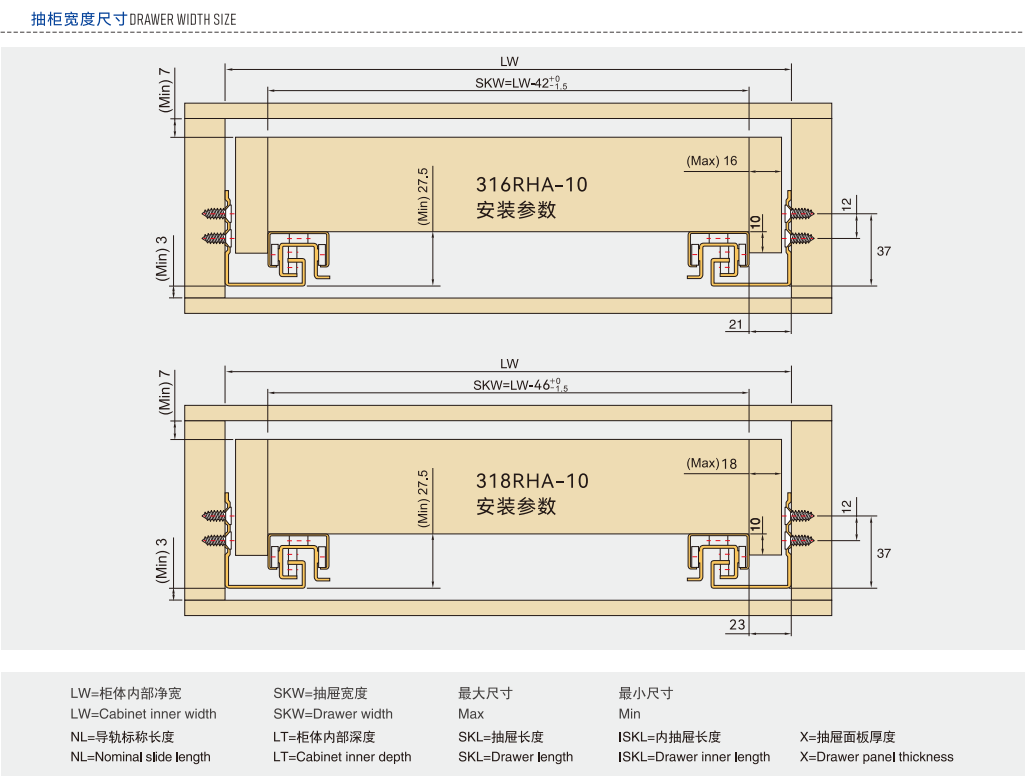

Product specifications
