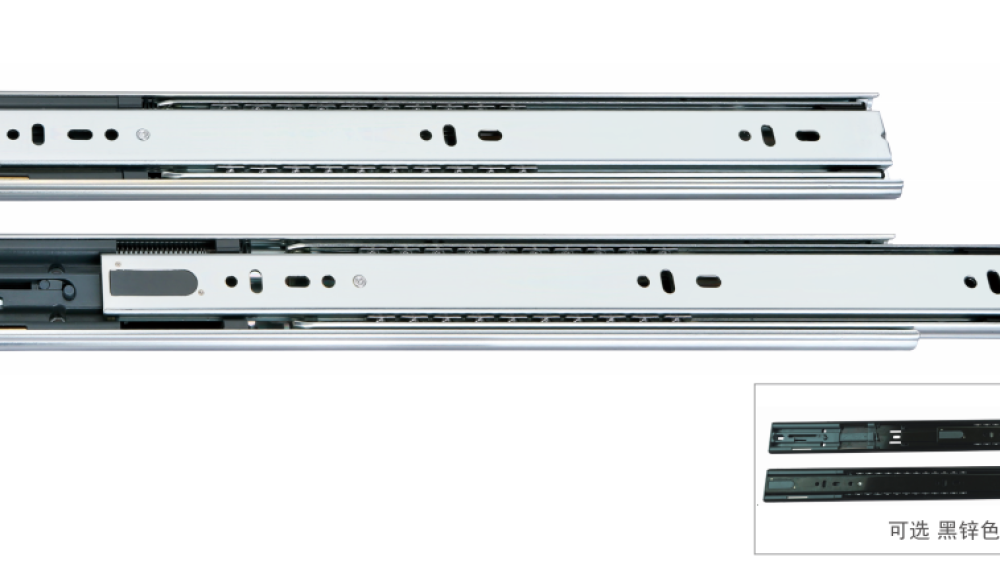

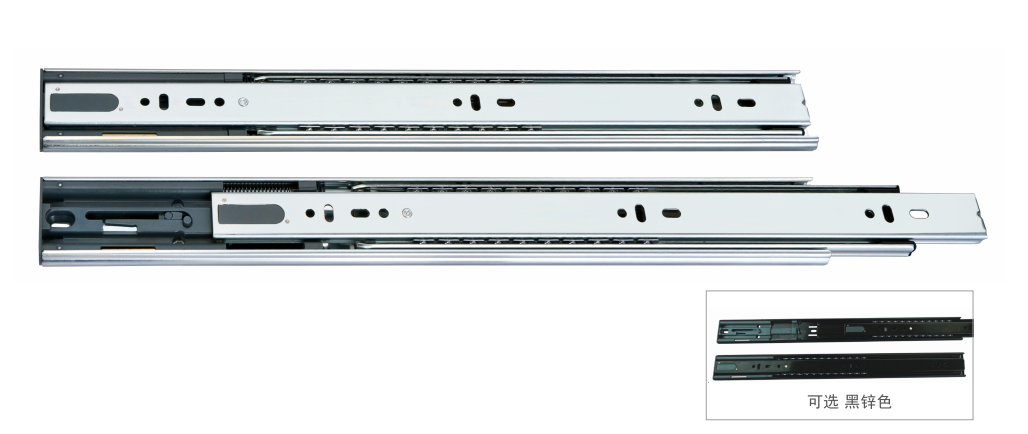

4512BC/4510BC Three-fold soft close ball bearing slide
- 4512BC/4510BC Three-fold soft close ball bearing slide

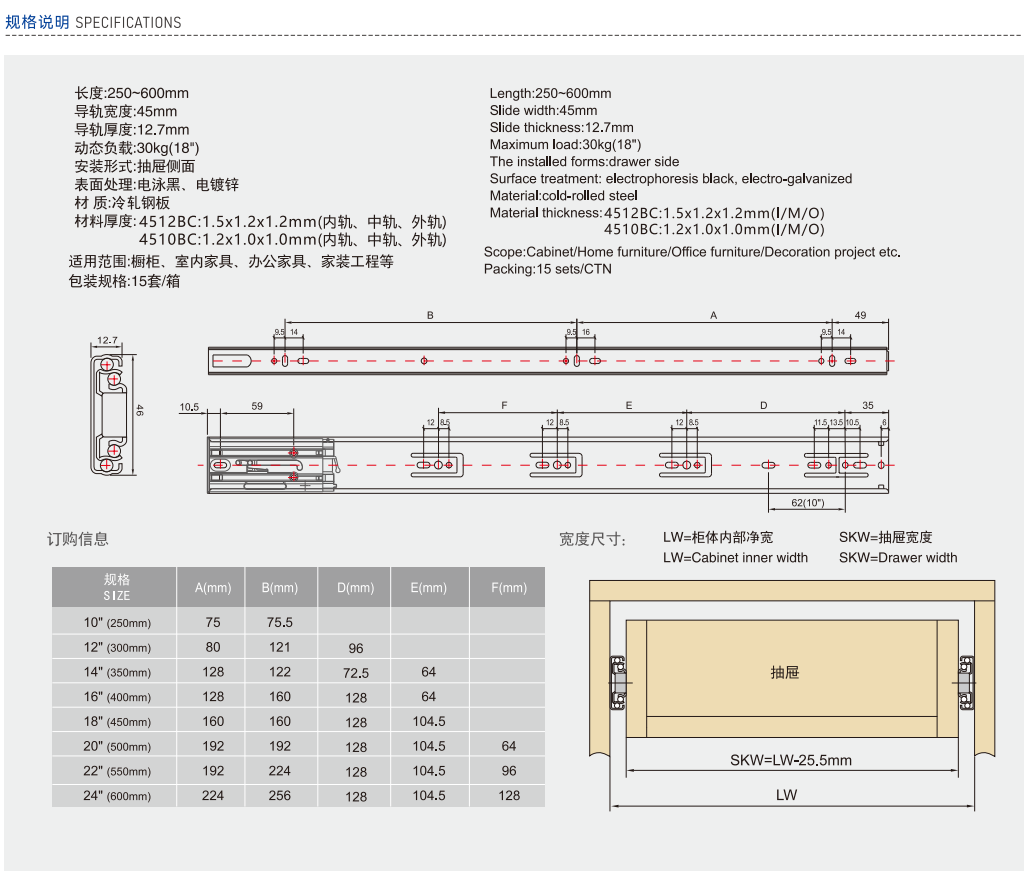

- Length:250~600mm
- Slide width:45mm
- Slide thickness:12.7mm
- Maximum load:30kg(18")

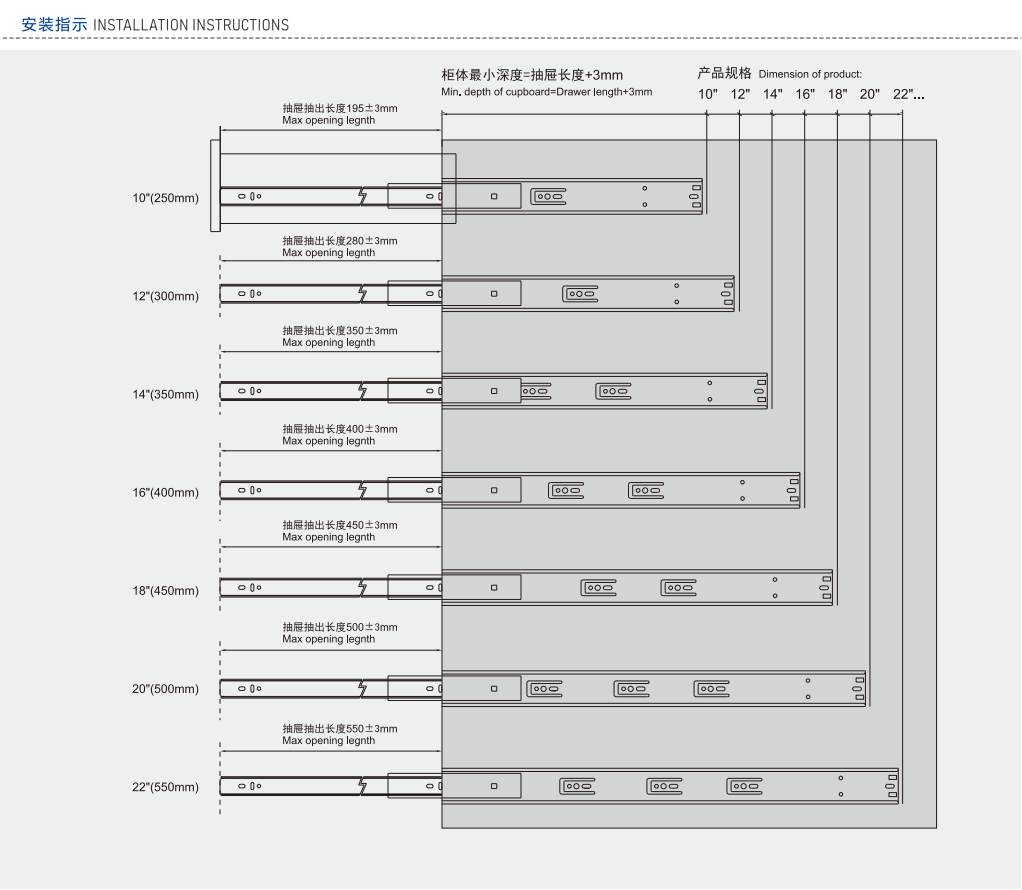

- The installed forms:drawer side
- Surface treatment: electrophoresis black, electro-galvanized
- Material:cold-rolled steel
- Material thickness: 4512BC:1.5x1.2x1.2mm(I/M/O)
- Material thickness: 4510BC:1.2x1.0x1.0mm(I/M/O)
- Scope: Cabinet/Home furniture/Office furniture/Decoration project etc.
- Packing: 15 sets/CTN
