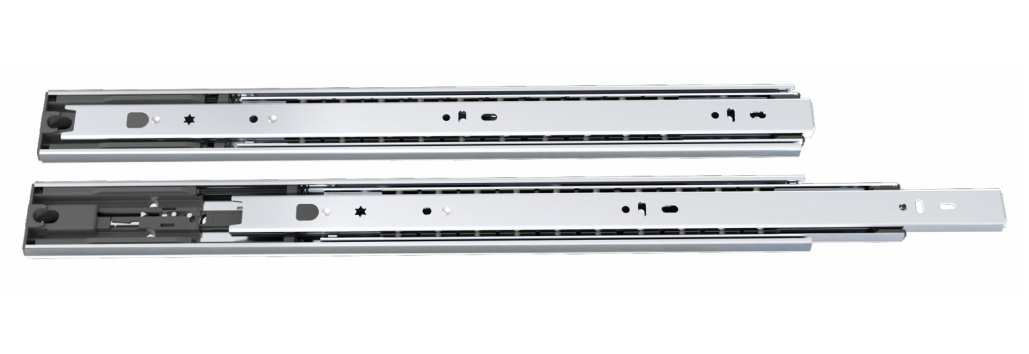

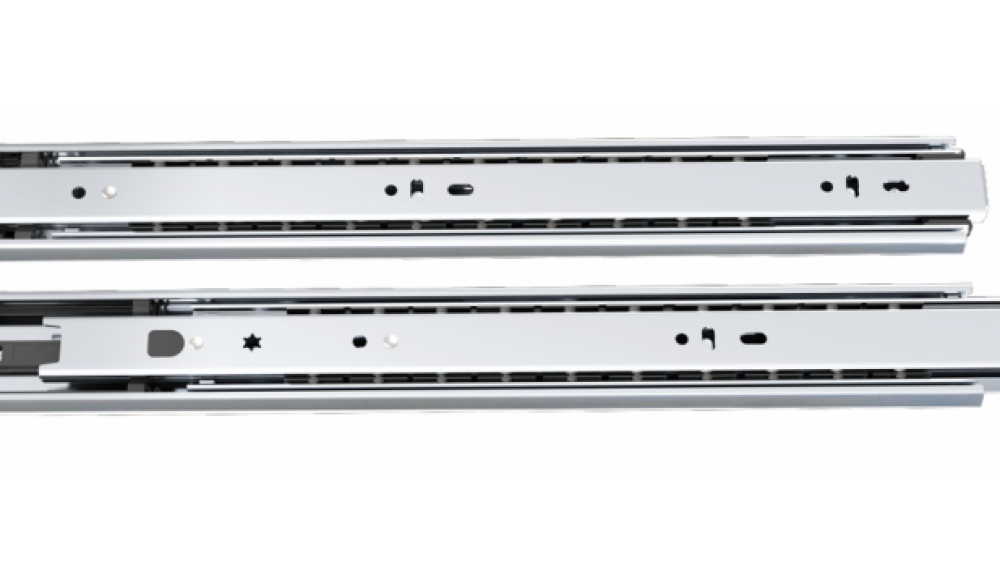

4512DR-2/4510DR-2 Three-Fold Push Open Ball Bearing Slide
- 4512DR-2/4510DR-2 Three-Fold Push Open Ball Bearing Slide
- Length: 250~700mm
- Slide width: 45mm
- Slide thickness: 12. 7mm
- Maximum load: 30kg(18'')
- The installed forms: Drawer side
- Surface treatment: Electrophoresis black, electro-galvanized
- Material: Cold-rolled Steel
- Material thickness: 4512DR-2: 1.5x1.2x1.2mm(I/M/O)
- Material thickness: 4510DR-2: 1.2x1.0x1.0mm(I/M/O)
- Scope: Cabinet/Home furniture/office furniture/ Decoration project etc.
- Packing: 15 sets/CTN
