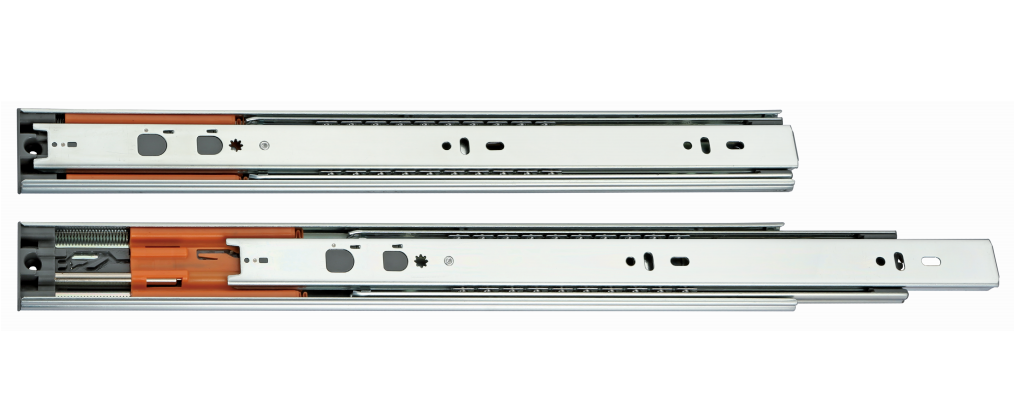

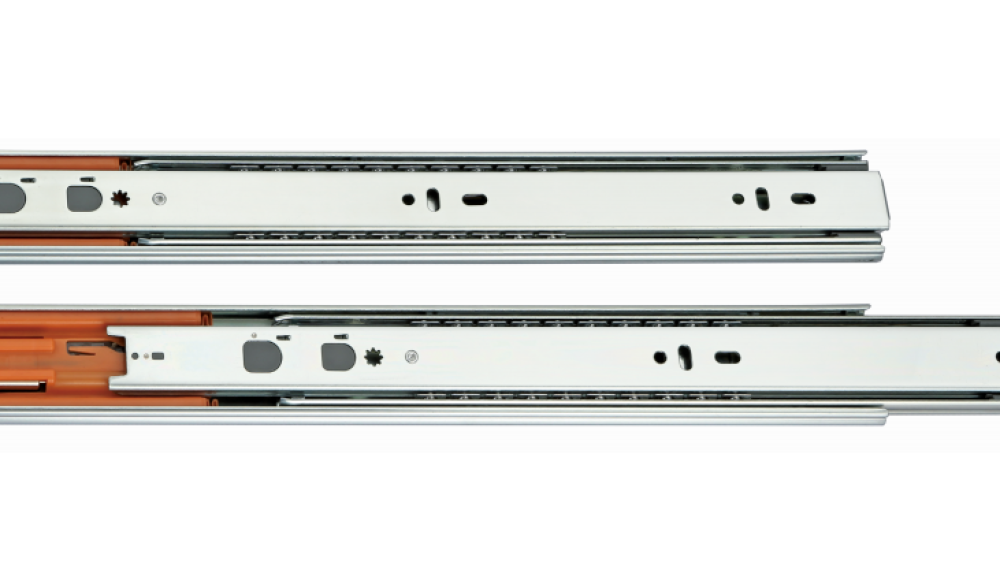

4512DB/4510DB Three-Fold Push Open & Soft Close Ball Bearing Slide

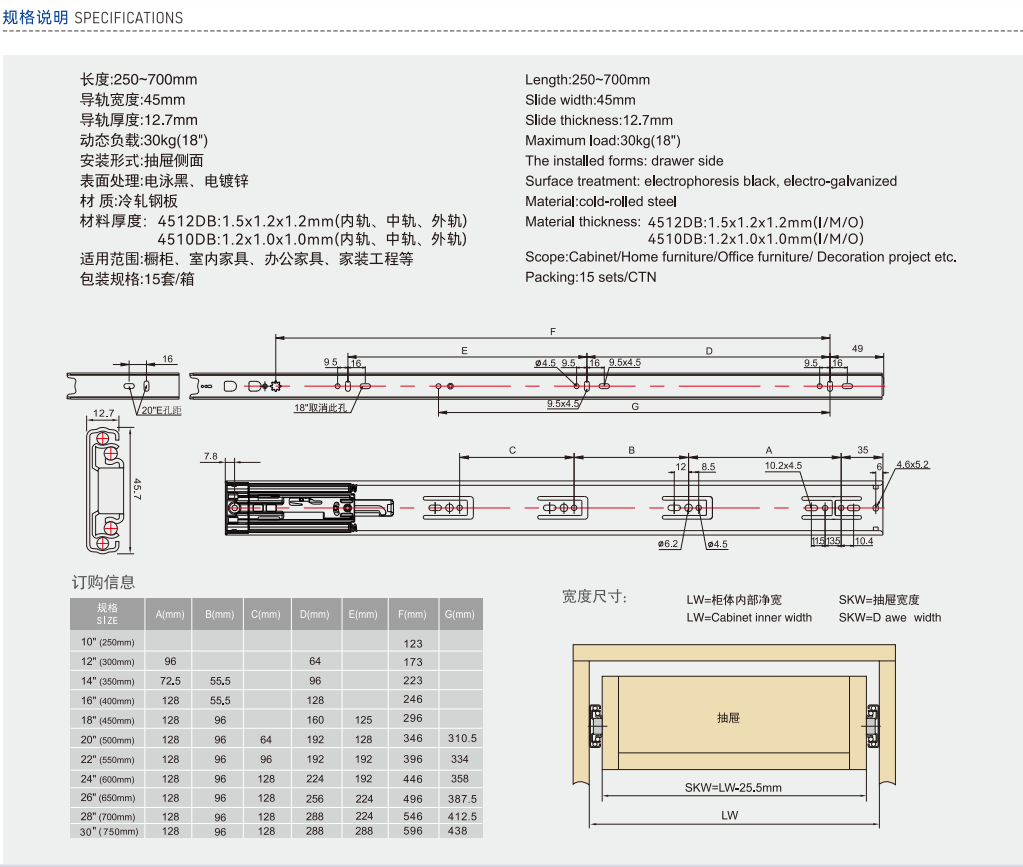

- 4512DB/4510DB Three-Fold Push Open & Soft Close Ball Bearing Slide
- Length: 250~700mm
- Slide width: 45mm
- Slide thickness: 12.7mm
- Maximum load: 30kg(18'')
- The installed forms: Drawer side
- Surface treatment: electrophoresis black, electro-galvanized
- Material: Cold-rolled Steel
- Material thickness: 4512DB:1.5x1.2x1.2mm(I/M/O)
- Material thickness: 4510DB:1.2x1.0x1.0mm(I/M/O)
- Scope: Cabinet/Home furniture/office furniture/ Decoration project etc.
- Packing: 15 sets/CTN
