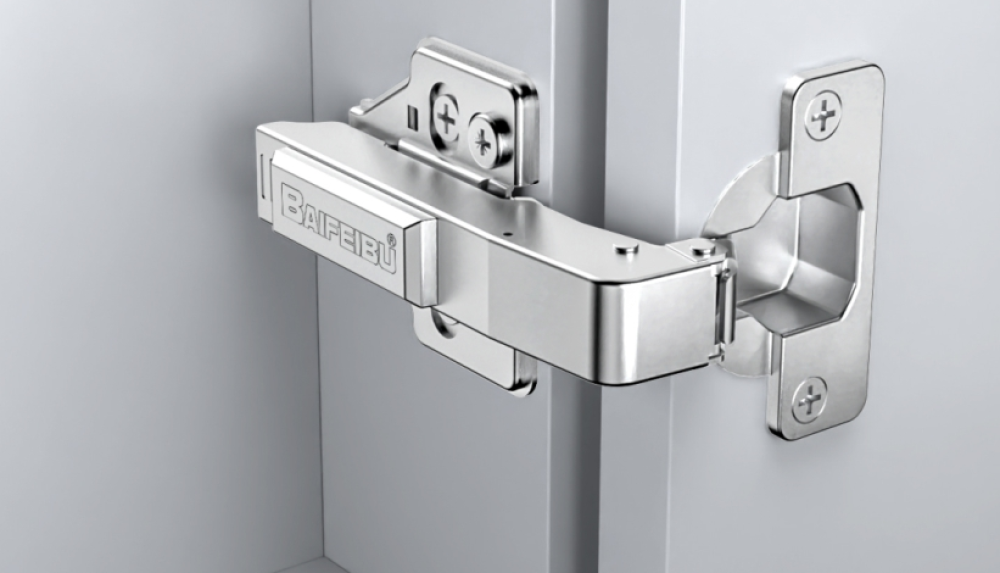

P90 Clip-on/Fixed-on Two way hydraulic buffering hinge
- P90 Clip-on/Fixed-on Two way hydraulic buffering hinge
- Opening angle: 95°
- Depth of hinge cup:12mm
- Diameter of hinge cup:35mm
- Door thickness:16-25mm
- DP/FP Depth adjustment:+3
- DKP Depth adjustment:+2
- Base up and down adjustment:+2
- Cover position adjustment:-5
- Main material :Cold-rolled steel
- Finish : Nickel plated/Gun-Colour
- Packing:100 or 200 pcs/CTN
