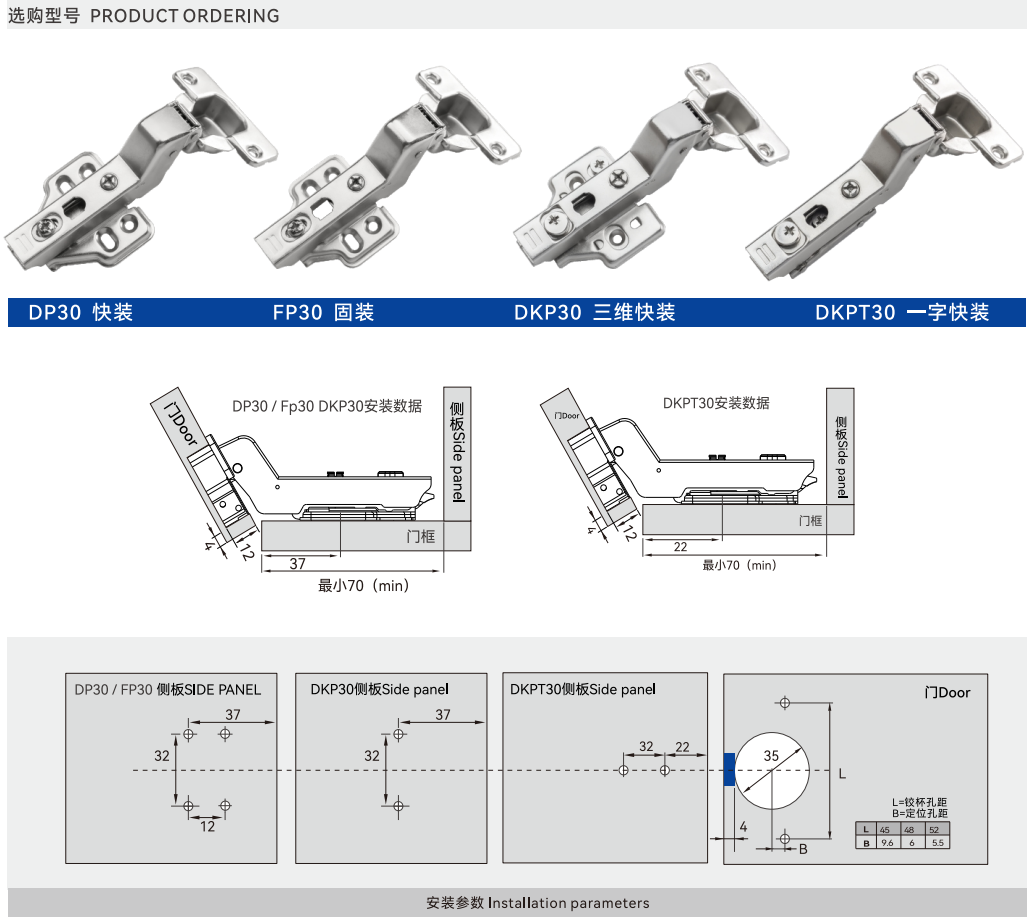

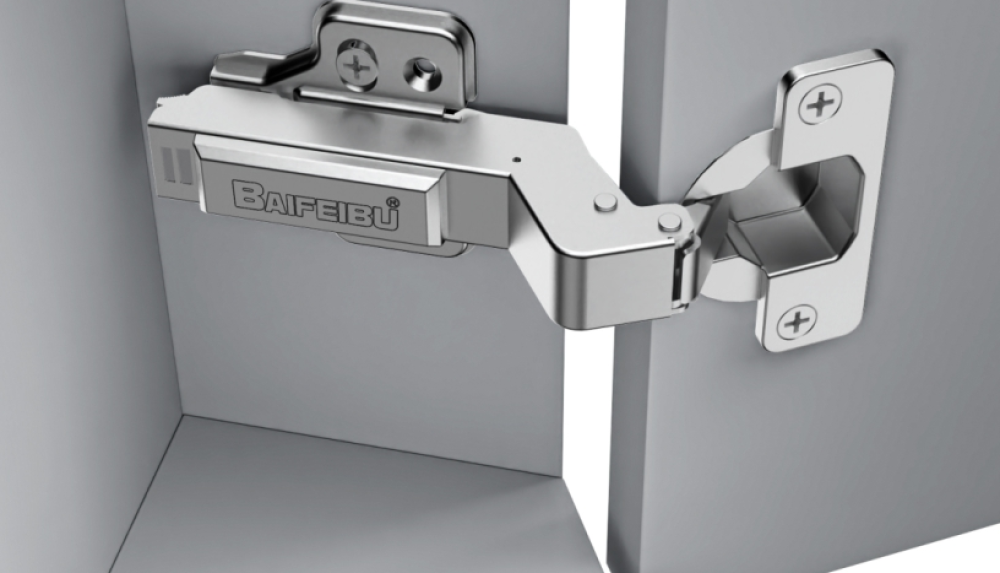

P30 Clip-on/Fixed-on Two Way Hydraulic Buffering Hinge
- P30 Clip-on/Fixed-on Two Way Hydraulic Buffering Hinge
- Opening angle: 95°
- Depth of hinge cup: 12mm
- Diameter of hinge cup: 35mm
- Door thickness: 16-25mm
- DP/FP Depth adjustment: +-3mm
- DKP Depth adjustment: +-2mm
- Base up and down adjustment: +-2mm
- Cover position adjustment:- 5mm
- Main material: Cold-rolled steel
- Finish: Nickel plated/Gun-Colour
- Packing: 100 or 200 pcs/ CTN
