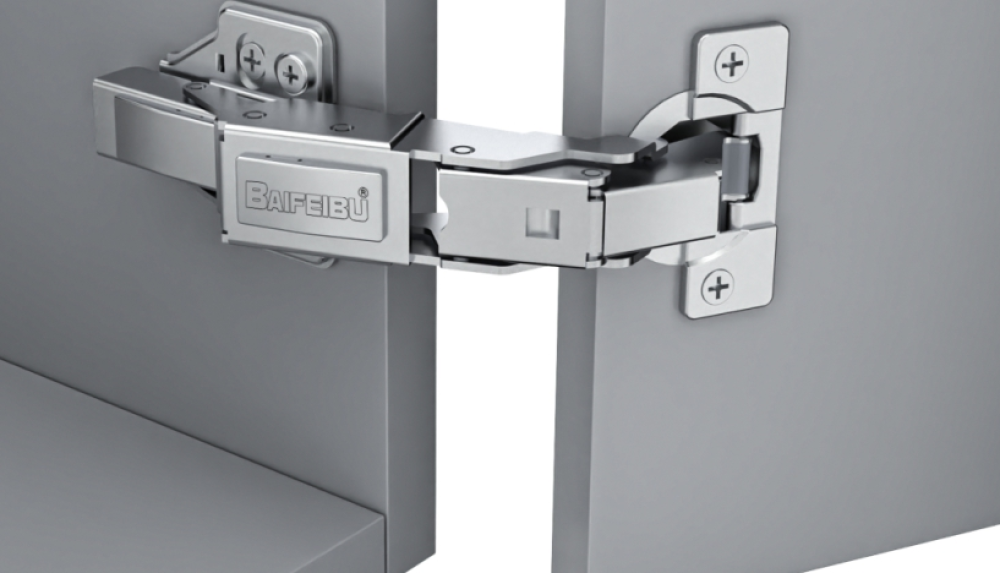

DKP165(W) Clip-on 3D Adjustment Undamped Hinge
- DKP165(W) Clip-on 3D Adjustment Undamped Hinge
- Opening angle: 165°
- Depth of hinge cup: 12mm
- Diameter of hinge cup: 35mm
- Door thickness: 16-23mm
- Depth adjustment: +-2mm
- Base up and down adjustment: +-2mm
- Cover position adjustment: -5mm
- Main material: Cold-rolled steel
- Finish: Nickel plated/Gun-Colour
- Packing: 100 or 200 pcs/ CTN
