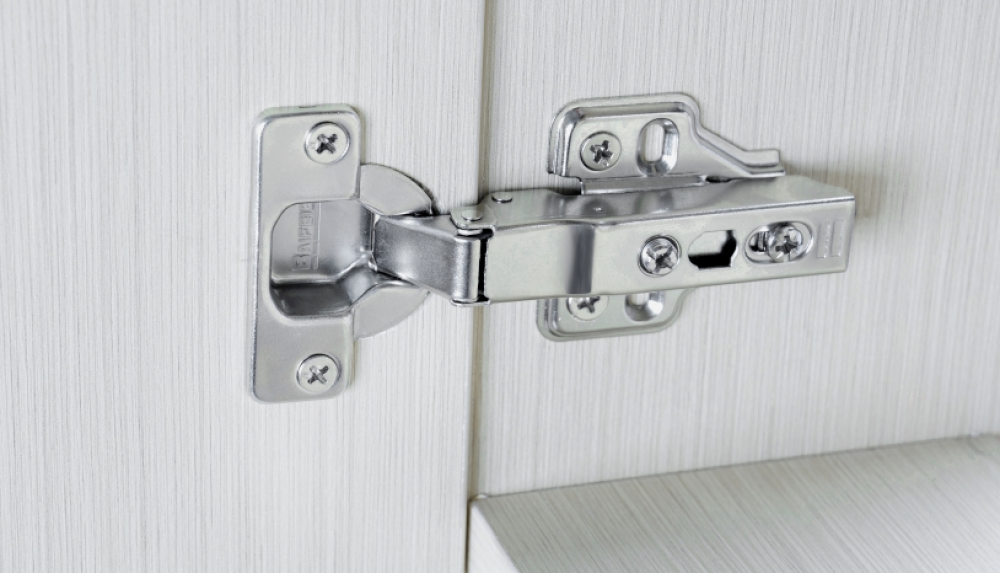

FP(R) Fixed-on Push Open Hinge
- FP(R) Fixed-on Push Open Hinge
- Opening angle: 95°
- Depth of hinge cup: 12mm
- Diameter of hinge cup: 35mm
- Door thickness: 16-25mm
- Depth adjustment: +-3mm
- Base up and down adjustment: +-2mm
- Cover position adjustment: -5mm
- Main material: Cold-rolled steel
- Finish: Nickel plated
- Packing:100 or 200 pcs/ CTN
