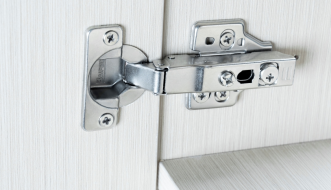

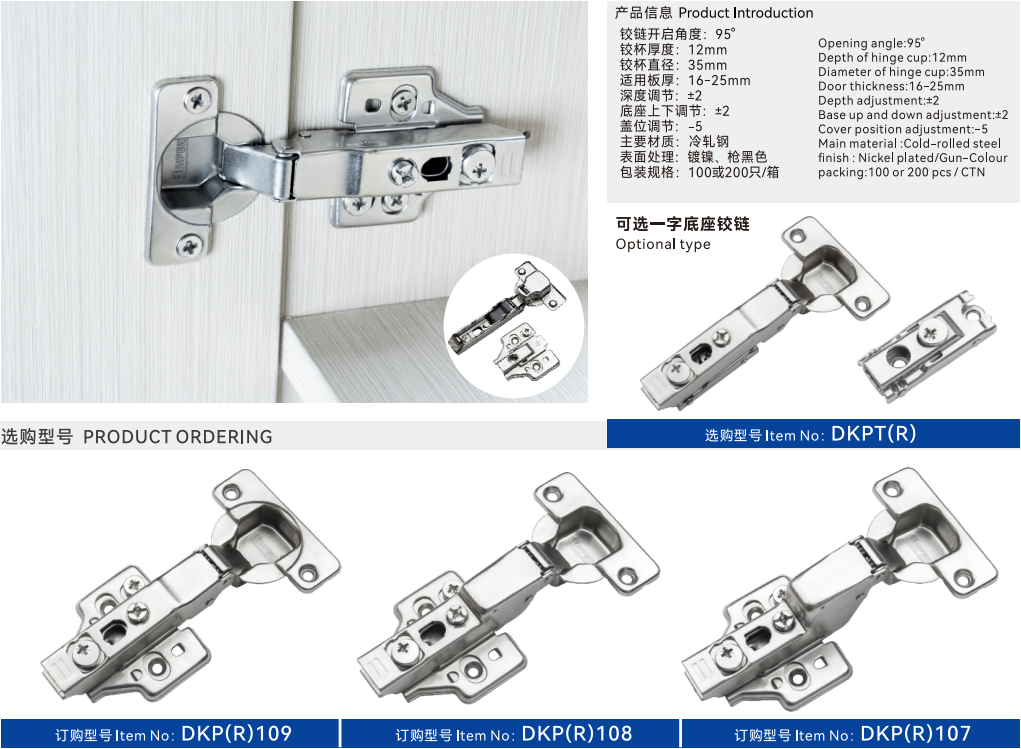

DKP(R) Clip-on 3D adjustment Push open hinge
- DKP(R) Clip-on 3D adjustment Push open hinge
- Opening angle: 95°
- Depth of hinge cup:12mm
- Diameter of hinge cup:35mm
- Door thickness: 16-25mm
- Depth adjustment: +-2
- Base up and down adjustment: +-2
- Cover position adjustment: -5
- Main material: Cold-rolled steel
- Finish: Nickel plated/Gun-Colour
- packing: 100 or 200 pcs/ CTN
