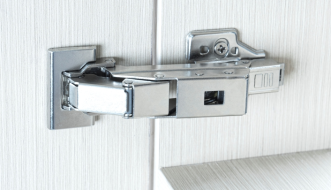

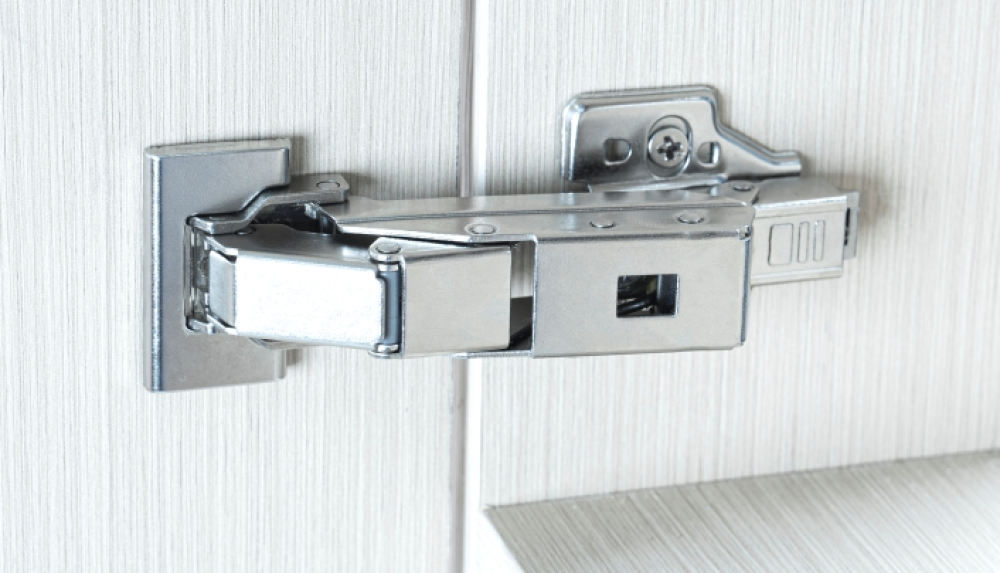

DI Clip-on 3D Adjustment No Need to Drill Hinge Cup Holes Buffering Hinge
- DI Clip-on 3D Adjustment No Need to Drill Hinge Cup Holes Buffering Hinge
- One hinge is universal for full overlay half overlay / embedded
- Door thickness: 14-18mm
- No need cup hole screw fixation
- Opening angle: 110°
- Depth adjustment: +-2mm
- Base up and down adjustment: +-2mm
- Cover position adjustment: -5mm
- Main material: Cold-rolled steel
- Finish: Nickel plated
- Packing: 100 or 200 pcs/CTN
